Best reliability - Unrivalled contamination removal
The Tek-BC 40 is Teknek’s latest in-line board cleaning platform designed to meet the demands of the modern electronics assembly sector.
Highlights of Tek-BC 40:
- Industry-first Advanced Load Control (ALC) for ultra-low strain (<50 microstrain units).
- Fully compliant with IPC-CFX-2591, IPC-HERMES-9852, and SMEMA connectivity standards.
- New Kevlar-reinforced conveyor belts with a 10-year warranty for zero-maintenance reliability.
- Static-safe operation compliant with ANSI/ESD S20.20 standards.

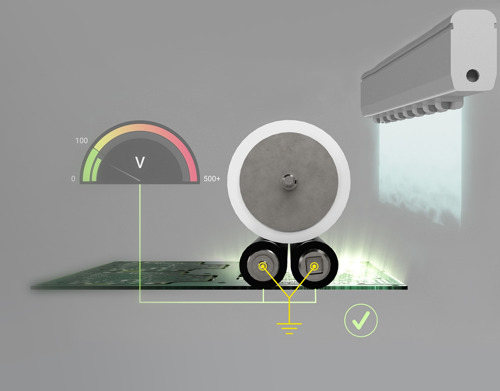

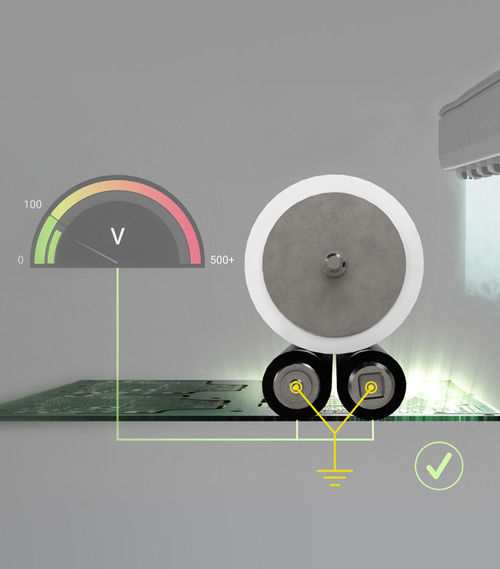

Low Static Cleaning for Improved Safety & Reliability
Using a "low static" cleaning system as part of a company-wide static control program not only increases yields through reduction of catastrophic ESD events but can help to reduce latent faults that can lead to in-field failures caused by EOS and thus improve in-field safety. This is especially important in high-criticality sectors including automotive and defence.
The Tek-BC-40 is fully compliant with ANSI ESD s20.20.
Cleaning System with Advanced Load Control - Prevent damage from strain
When it comes to contact cleaning systems, the amount of force applied and resulting strain on the materials to be cleaned is a crucial factor to consider.
Tek-BC-40 is the first machine to feature the patented Teknek ALC (Advanced Load Control) which results in the lowest strain rate possible as measured using IPC/JEDEC 9704, typically less than 50micro strain units.

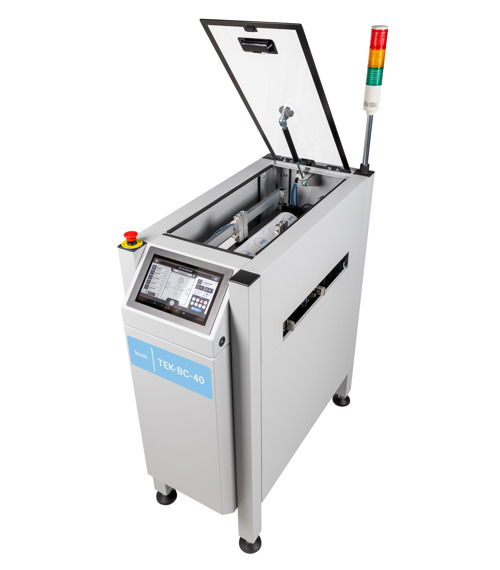

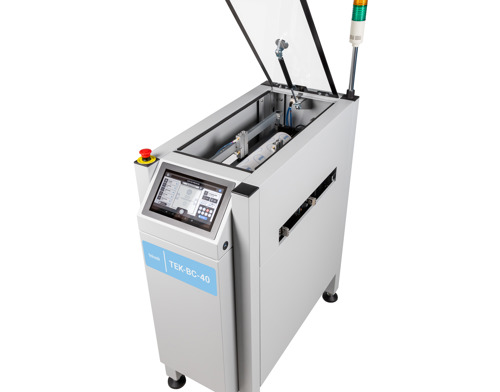

Tek-BC-40
With over 30 years’ experience of providing defect removal solutions to the PCB assembly sector, Teknek has encapsulated its deep understanding of the market and produced the newest version of its highly successful Tek-BC range.
High efficiency particle removal has always been Teknek’s trademark and that continues in Tek-BC 40.
However, for the modern assembly sector there are many other demands, for example interconnectivity , IPC-CFX -2591), IPC-HERMES-9852 and SMEMA are standard on this new range.
Improving yields by removing potential defects is essential for this sector however, the cleaning process must not affect the board or any components, so controlling static and strain are very important.
Tek-BC-30 is the first machine to feature the patented Teknek ALC (Advanced Load Control) which results in the lowest strain rate possible as measured using IPC/JEDEC 9704, typically less than 50micro strain units. The machine is also fully compliant with ANSI/ESD s20.20, ensuring no ESD or EOS events occur during the cleaning process.
High reliability, along with high availability is essential for the high-volume electronics assembly sector, the new Tek-BC range sets new standards for reliability, for example the new conveyor system uses Kevlar reinforced single piece conveyor belts. This new system provides long like with zero maintenance. In addition, the new conveyors are able to handle heavier boards, or heavy board carriers. So confident is Teknek regarding the new conveyor system it offer a 10-year warranty on Tek-BC-40 belts.
All parts of the machine can be accessed when the machine is in line making any maintenance simple and quick.
